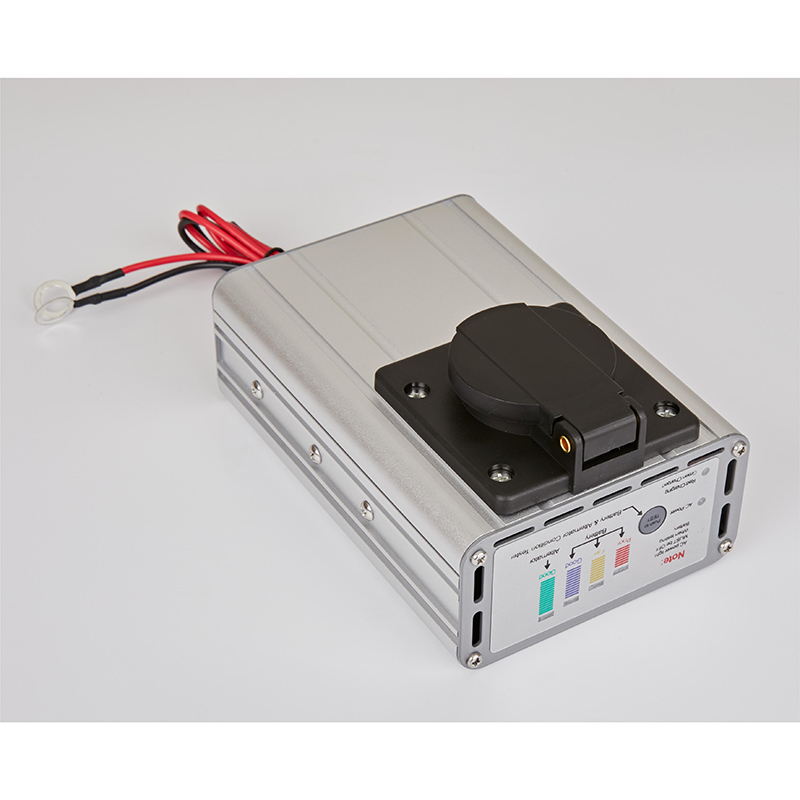

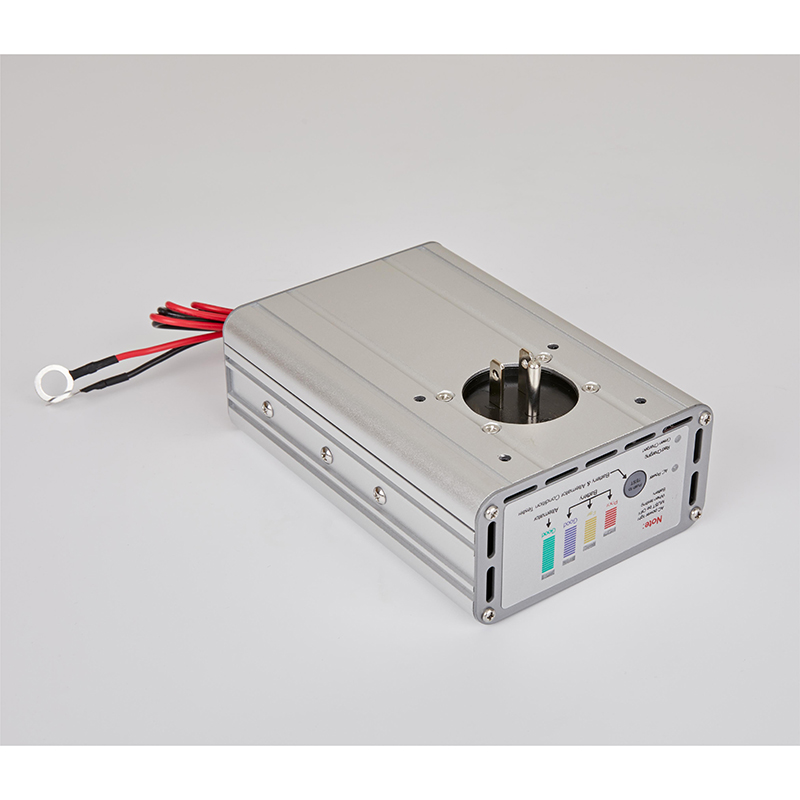

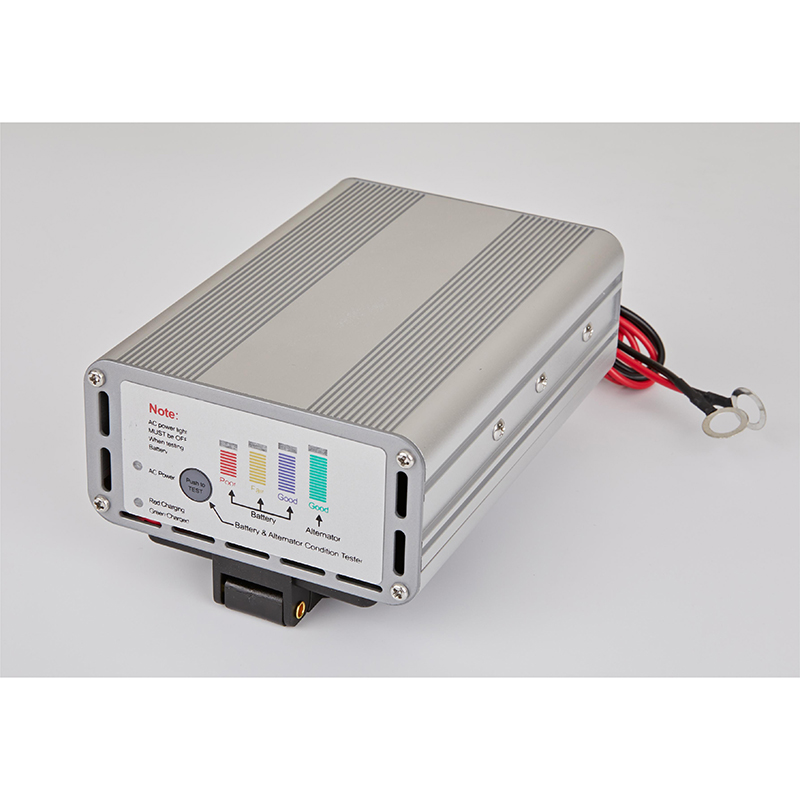

8 Amp Panel Mount Battery Charger&Tester D1208T
- SPECIFICATION
- MANUFACTURING
- Factory introduction
| User Manual | ||||||||||
| 1) Connect the positive (Red) cable to the positive terminal of the battery and connect the negative (Black) cable to the negative terrinal of the battery. | ||||||||||
| 2) Connect the power outlet (110 VAC/60Hz) to the 3-prong plug of the battery Charger. | ||||||||||
| 3) The LED of battery charger will indicate the status of the charger. | ||||||||||
| 4) The LED of battery tester will indicate the status of the battery and alternator/charging system. | ||||||||||
| 5) To test a battery, the vehicle's engine and lights etc. must be turned off and AC power must be unplugged. | ||||||||||
| 6) To test an alternator/charging system, the engine must be running at 2,000rpm minimum and lights and accessories must be turned off (Note: testing results will read incorrect when connected to AC power). | ||||||||||
| 7) Then simply push the "PUSH" button to get your test results. | ||||||||||
| ||||||||||
| ||||||||||
| ||||||||||
| LED indication | ||||||||||
| Charger | ||||||||||
| LED Light | Description | On/OFF | Condition | |||||||
| Green | Input AC Powe | On | AC power is present. | |||||||
| Off | Check wall receptacle for 110 volts or check lead connections. | |||||||||
| Red/Green | Charging Status | Red On | Charging | |||||||
| Green On | Charged or trickle charging | |||||||||
| Battery & Alternator Condition Tester | ||||||||||
| Red | Yellow | Blue | Green | Condition | Remedy | |||||
| Off | OFF | OFF | OFF | Battery is dead (below 11.2V). | Please repair or replace it. | |||||
| ON | OFF | OFF | OFF | Battery is poor (11.2 to 11.6V) | Please stop work and charge it to fully. | |||||
| ON | ON | OFF | OFF | Battery is fair (11.7 lo 12.2V). | Please charge it to fully. | |||||
| ON | ON | ON | OFF | Battery is good (12.3 to 13.6 V). | Please charge it for maintaining. | |||||
| ON | ON | ON | ON | Alternator/charging system is good. | ||||||
| -- | -- | -- | OFF | Alternator/charging system is good. | Please repair it. | |||||
| Trouble shooting when charger doesn't work: | ||||||||||
| 1. Check to make sure the power connected rightly to AC120V | ||||||||||
| 2. Check whether battery terminals are in good touching with wire clip of charger, if terminals are oxidized, clean and connect again. | ||||||||||
| 3. Check whether battery terminals are rightly connected with wire of charger, if connected reversely, connect again rightly. | ||||||||||
| 4. Check whether a battery over DC12V was connected, use only with DC 12V Lead-Acid Battery please. | ||||||||||
| 5. Check whether the body of charger is over 65 C, it will start to work again after cool down. | ||||||||||
| 6. Check to make sure there is no short circuit or over currency on output. | ||||||||||
| 7. Check battery with battery tester or Multi-Meter, if battery is too low, plase repair or change batter | ||||||||||
| 8. Please stop charging if battery gets hot, if battery is bad, please repair or change battery. | ||||||||||
| Battery Charger with Tester: SCT -L1MP | |||
| DC12V/8Amp, 3 Charging Steps, Panel Mountate Battery Charger with "Push Button" Battery/ Alternator Tester | |||
| Specification | |||
| Input | AC 120 V, 60Hz | Lead Wire | 3-Prong Plug |
| Output | DC 12V, Max. 9.5 Amp | Battery Cables | 24 inches, 16AWG |
| Charge Current | Max. 9.5Amp | Body Size | 153x105x52mm |
| Type of Battery Used | 12V Lead-Acid Battery | Weight | 0.8kg |
| Efficiency | >85% | Shell Material | Aluminum |
| Description of Charger | |||
| • Max 8Amp charger for 12V battery with 3 charging steps by PWM technology as follow: | |||
| 1) Constant-Current Charge---when the battery voltage is lower than set point,it will charge the battery at the max. current which is called quick charging. | |||
| 2) Constant- Voltage Charge---when the battery is almost been fully charged, the charger will limit the current automatically. | |||
| 3) Float Charge---when the battery voltage reaches the float voltage of 13.5V, it will automatically switch to the float charging condition with current of 0.1A-0.8A. | |||
| • LED indicates power and stage of charging | |||
| • Reverse polarity protection & Output short circuit protection & AC input protection | |||
| • Over charge protection & Over thermal protection | |||
| Description of Battery/Alternator Condition Tester | |||
| •LED indicators verify the conditions of battery and alternator/charging system | |||
| •Monitor the condition of battery and alternator/charging system with a "Push Button" | |||
| •Press a "Push Button to know when replacement is actually needed | |||
