HomeProducts Cylinder AG-Agriculturer Cylinder

Hydraulic Cylinder

TR-Tie Rod Cylinder 2500 PSI

Views Product

TH-Tie Rod Cylinder 3000 PSI

Views Product

WT-Welding Bushing Cylinder

Views Product

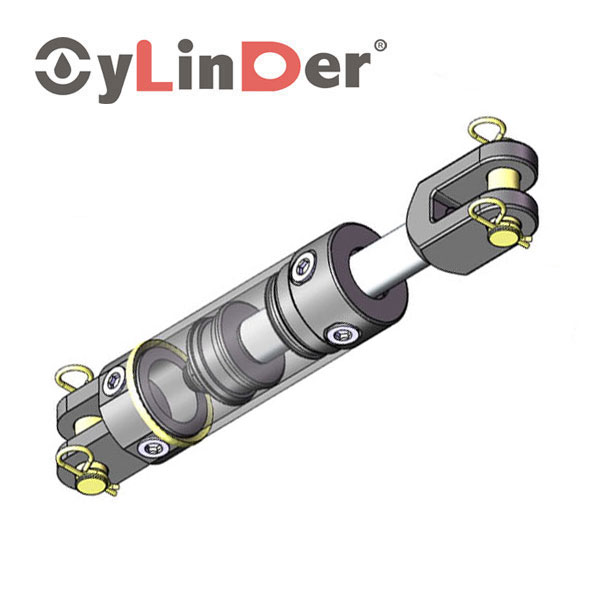

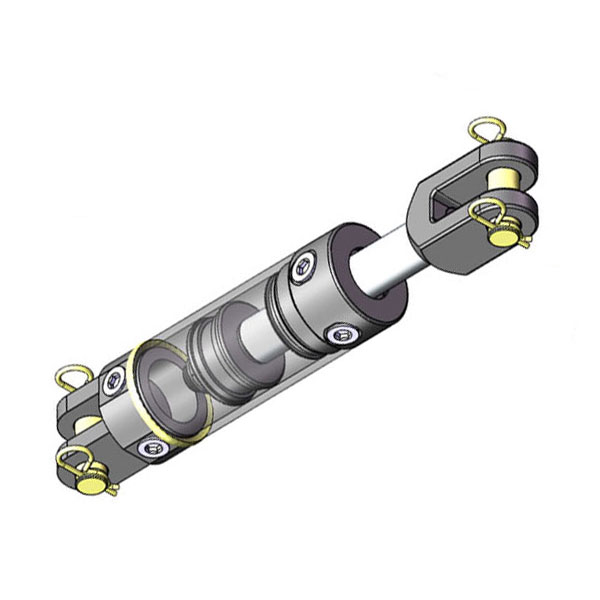

AG-Agriculturer Cylinder

Bore Size

Rod Size

Oil Port

Intended Size

Stroke

Working Pressure / PSL

Size: TR

Quantity:

ADD TO CART PDF download

I agree with the terms and conditions

Tags:

SPECIFICATION
MANUFACTURING
Factory introduction


*All DIMENSIONS ARE INCHES.

BORE

ROD

PORTS

A

B

C

D

E

F

G

H

I

J

1.50"

0.866"

SAE 6

9.50"

4.125"

3.50"

1.25"

0.843"

0.85"

1.77"

1.80"

0.75"

1.25"

2.00"

1.25"

SAE 8

12.25"

4.375"

5.124"

2.00"

1.102"

1.125"

2.545"

2.04"

1.00"

2.125"

2.50"

1.50"

SAE 8

12.25"

4.37"

5.12"

2.00"

1.10"

1.125"

2.545"

2.35"

1.00"

2.125"

3.00"

1.50"

SAE 8

12.25"

4.37"

5.12"

2.00"

1.10"

1.125"

2.545"

2.35"

1.00"

2.125"

3.50"

1.75"

SAE 8

12.25"

4.37"

5.12"

2.00"

1.10"

1.125"

2.545"

2.67"

1.00"

2.125"

4.00"

1.75"

SAE 8

12.25"

4.37"

5.12"

2.00"

1.10"

1.125"

2.545"

2.67"

1.00"

2.125"

5.00"

2.00"

SAE 8

12.25"

5.35”

4.27"

2.00"

1.10"

1.125"

2.545"

2.68"

1.00"

2.125"

The LDAG 3000PSI Agriculture Welded Cylinders were designed for agriculture machines, the benefits for 2 ports both in A and B position making the assembling way more flexible. LDAG is quite famous in Australia and South Africa agriculture markets. Each cylinder undergoes rigorous testing for over 50,000 circles with 3000PSI equivalent load. Good reliable quality ensures 2 Years Limited Warranty.
*All numbers given are nominal values and should be used for reference only. All product specifications are subject to change without prior notice.

WELDED CYLINDER-AGRICULTURE TYPE

PART NUMBER	BORE & STROKE	DIMENSIONS		ROD DIAMETER	PIN SIZE	PORTS	WEIGHT (LBS)
PART NUMBER	BORE & STROKE	RETRACTED	EXTENDED	ROD DIAMETER	PIN SIZE	PORTS	WEIGHT (LBS)
AG-1502-LD	1.5"×2"	11 1/2"	13 1/2"	0.866"	3/4"	SAE 6	7
AG-1504-LD	1.5"×4"	13 1/2"	17 1/2"				8
AG-1506-LD	1.5"×6"	15 1/2"	21 1/2"				9
AG-1508-LD	1.5"×8"	17 1/2"	25 1/2"				11
AG-1510-LD	1.5"×10"	19 1/2"	29 1/2"				12
AG-1512-LD	1.5"×12"	21 1/2"	33 1/2"				13
AG-1516-LD	1.5"×16"	25 1/2"	41 1/2"				15
AG-1518-LD	1.5"×18"	27 1/2"	45 1/2"				16
AG-1520-LD	1.5"×20"	29 1/2"	49 1/2"				17
AG-1524-LD	1.5"×24"	33 1/2"	57 1/2"				19
AG-1530-LD	1.5"×30"	39 1/2"	69 1/2"				23
AG-1536-LD	1.5"×36"	45 1/2"	81 1/2"				26
AG-1548-LD	1.5"×48"	57 1/2"	105 1/2"				40
AG-2002-LD	2"×2"	14 1/4"	16 1/4"	1 1/4"	1"	SAE 8	16
AG-2004-LD	2"×4"	16 1/4"	20 1/4"				18
AG-2006-LD	2"×6"	18 1/4"	24 1/4"				20
AG-2008-LD	2"×8"	20 1/4"	28 1/4"				22
AG-2010-LD	2"×10"	22 1/4"	32 1/4"				23
AG-2012-LD	2"×12"	24 1/4"	36 1/4"				25
AG-2014-LD	2"×14"	26 1/4"	40 1/4"				27
AG-2016-LD	2"×16"	28 1/4"	44 1/4"				29
AG-2018-LD	2"×18"	30 1/4"	48 1/4"				30
AG-2020-LD	2"×20"	32 1/4"	52 1/4"				32
AG-2022-LD	2"×22"	34 1/4"	56 1/4"				34
AG-2024-LD	2"×24"	36 1/4"	60 1/4"				36
AG-2026-LD	2"×26"	38 1/4"	64 1/4"				38
AG-2028-LD	2"×28"	40 1/4"	68 1/4"				39
AG-2030-LD	2"×30"	42 1/4"	72 1/4"				41
AG-2036-LD	2"×36"	48 1/4"	84 1/4"				46
AG-2042-LD	2"×42"	54 1/4"	96 1/4"				52
AG-2048-LD	2"×48"	60 1/4"	108 1/4"				57
AG-2504-LD	2.5"×4"	16 1/4"	20 1/4"	1 1/2"	1"	SAE 8	20
AG-2506-LD	2.5"×6"	18 1/4"	24 1/4"				22
AG-2508-LD	2.5"×8"	20 1/4"	28 1/4"				24
AG-2510-LD	2.5"×10"	22 1/4"	32 1/4"				26
AG-2512-LD	2.5"×12"	24 1/4"	36 1/4"				29
AG-2514-LD	2.5"×14"	26 1/4"	40 1/4"				31
AG-2516-LD	2.5"×16"	28 1/4"	44 1/4"				33
AG-2518-LD	2.5"×18"	30 1/4"	48 1/4"				33
AG-2520-LD	2.5"×20"	32 1/4"	52 1/4"				35
AG-2522-LD	2.5"×22"	34 1/4"	56 1/4"				38
AG-2524-LD	2.5"×24"	36 1/4"	60 1/4"				40
AG-2526-LD	2.5"×26"	38 1/4"	64 1/4"				42
AG-2528-LD	2.5"×28"	40 1/4"	68 1/4"				44
AG-2530-LD	2.5"×30"	42 1/4"	72 1/4"				46
AG-2536-LD	2.5"×36"	48 1/4"	84 1/4"				51
AG-2542-LD	2.5"×42"	54 1/4"	96 1/4"				57
AG-2548-LD	2.5"×48"	60 1/4"	108 1/4"				64
AG-3004-LD	3"×4"	16 1/4"	20 1/4"	1 1/2"	1"	SAE 8	26
AG-3006-LD	3"×6"	18 1/4"	24 1/4"				29
AG-3008-LD	3"×8"	20 1/4"	28 1/4"				31
AG-3010-LD	3"×10"	22 1/4"	32 1/4"				33
AG-3012-LD	3"×12"	24 1/4"	36 1/4"				38
AG-3014-LD	3"×14"	26 1/4"	40 1/4"				40
AG-3016-LD	3"×16"	28 1/4"	44 1/4"				42
AG-3018-LD	3"×18"	30 1/4"	48 1/4"				44
AG-3020-LD	3"×20"	32 1/4"	52 1/4"				46
AG-3022-LD	3"×22"	34 1/4"	56 1/4"				49
AG-3024-LD	3"×24"	36 1/4"	60 1/4"				51
AG-3026-LD	3"×26"	38 1/4"	64 1/4"				53
AG-3028-LD	3"×28"	40 1/4"	68 1/4"				57
AG-3030-LD	3"×30"	42 1/4"	72 1/4"				60
AG-3036-LD	3"×36"	48 1/4"	84 1/4"				66
AG-3042-LD	3"×42"	54 1/4"	96 1/4"				73
AG-3048-LD	3"×48"	60 1/4"	108 1/4"				82
AG-3506-LD	3.5"×6"	18 1/4"	24 1/4"	1 3/4"	1"	SAE 8	49
AG-3508-LD	3.5"×8"	20 1/4"	28 1/4"				51
AG-3510-LD	3.5"×10"	22 1/4"	32 1/4"				55
AG-3512-LD	3.5"×12"	24 1/4"	36 1/4"				57
AG-3514-LD	3.5"×14"	26 1/4"	40 1/4"				60
AG-3516-LD	3.5"×16"	28 1/4"	44 1/4"				64
AG-3518-LD	3.5"×18"	30 1/4"	48 1/4"				66
AG-3520-LD	3.5"×20"	32 1/4"	52 1/4"				71
AG-3524-LD	3.5"×24"	36 1/4"	60 1/4"				75
AG-3530-LD	3.5"×30"	42 1/4"	72 1/4"				86
AG-3536-LD	3.5"×36"	48 1/4"	84 1/4"				95
AG-3542-LD	3.5"×42"	54 1/4"	96 1/4"				104
AG-3548-LD	3.5"×48"	60 1/4"	108 1/4"				113
AG-4008-LD	4"×8"	20 1/4"	28 1/4"	1 3/4"	1"	SAE 8	51
AG-4012-LD	4"×12"	24 1/4"	36 1/4"				57
AG-4016-LD	4"×16"	28 1/4"	44 1/4"				64
AG-4018-LD	4"×18"	30 1/4"	48 1/4"				66
AG-4020-LD	4"×20"	32 1/4"	52 1/4"				71
AG-4024-LD	4"×24"	36 1/4"	60 1/4"				77
AG-4030-LD	4"×30"	42 1/4"	72 1/4"				86
AG-4036-LD	4"×36"	48 1/4"	84 1/4"				97
AG-4042-LD	4"×42"	54 1/4"	96 1/4"				106
AG-4048-LD	4"×48"	60 1/4"	108 1/4"				117
AG-5008-LD	5"×8"	20 1/4"	28 1/4"	2"	1"	SAE 8	68
AG-5012-LD	5"×12"	24 1/4"	36 1/4"				77
AG-5016-LD	5"×16"	28 1/4"	44 1/4"				84
AG-5018-LD	5"×18"	30 1/4"	48 1/4"				88
AG-5020-LD	5"×20"	32 1/4"	52 1/4"				93
AG-5024-LD	5"×24"	36 1/4"	60 1/4"				101
AG-5030-LD	5"×30"	42 1/4"	72 1/4"				115
AG-5036-LD	5"×36"	48 1/4"	84 1/4"				126
AG-5048-LD	5"×48"	60 1/4"	108 1/4"				152

*All DIMENSIONS ARE INCHES.

BORE

ROD

PORTS

A

B

C

D

E

F

G

H

I

J

1.50"

0.866"

SAE 6

9.50"

4.125"

3.50"

1.25"

0.843"

0.85"

1.77"

1.80"

0.75"

1.25"

2.00"

1.25"

SAE 8

12.25"

4.375"

5.124"

2.00"

1.102"

1.125"

2.545"

2.04"

1.00"

2.125"

2.50"

1.50"

SAE 8

12.25"

4.37"

5.12"

2.00"

1.10"

1.125"

2.545"

2.35"

1.00"

2.125"

3.00"

1.50"

SAE 8

12.25"

4.37"

5.12"

2.00"

1.10"

1.125"

2.545"

2.35"

1.00"

2.125"

3.50"

1.75"

SAE 8

12.25"

4.37"

5.12"

2.00"

1.10"

1.125"

2.545"

2.67"

1.00"

2.125"

4.00"

1.75"

SAE 8

12.25"

4.37"

5.12"

2.00"

1.10"

1.125"

2.545"

2.67"

1.00"

2.125"

5.00"

2.00"

SAE 8

12.25"

5.35”

4.27"

2.00"

1.10"

1.125"

2.545"

2.68"

1.00"

2.125"

The LDAG 3000PSI Agriculture Welded Cylinders were designed for agriculture machines, the benefits for 2 ports both in A and B position making the assembling way more flexible. LDAG is quite famous in Australia and South Africa agriculture markets. Each cylinder undergoes rigorous testing for over 50,000 circles with 3000PSI equivalent load. Good reliable quality ensures 2 Years Limited Warranty.
*All numbers given are nominal values and should be used for reference only. All product specifications are subject to change without prior notice.

WELDED CYLINDER-AGRICULTURE TYPE

PART NUMBER	BORE & STROKE	DIMENSIONS		ROD DIAMETER	PIN SIZE	PORTS	WEIGHT (LBS)
PART NUMBER	BORE & STROKE	RETRACTED	EXTENDED	ROD DIAMETER	PIN SIZE	PORTS	WEIGHT (LBS)
AG-1502-LD	1.5"×2"	11 1/2"	13 1/2"	0.866"	3/4"	SAE 6	7
AG-1504-LD	1.5"×4"	13 1/2"	17 1/2"				8
AG-1506-LD	1.5"×6"	15 1/2"	21 1/2"				9
AG-1508-LD	1.5"×8"	17 1/2"	25 1/2"				11
AG-1510-LD	1.5"×10"	19 1/2"	29 1/2"				12
AG-1512-LD	1.5"×12"	21 1/2"	33 1/2"				13
AG-1516-LD	1.5"×16"	25 1/2"	41 1/2"				15
AG-1518-LD	1.5"×18"	27 1/2"	45 1/2"				16
AG-1520-LD	1.5"×20"	29 1/2"	49 1/2"				17
AG-1524-LD	1.5"×24"	33 1/2"	57 1/2"				19
AG-1530-LD	1.5"×30"	39 1/2"	69 1/2"				23
AG-1536-LD	1.5"×36"	45 1/2"	81 1/2"				26
AG-1548-LD	1.5"×48"	57 1/2"	105 1/2"				40
AG-2002-LD	2"×2"	14 1/4"	16 1/4"	1 1/4"	1"	SAE 8	16
AG-2004-LD	2"×4"	16 1/4"	20 1/4"				18
AG-2006-LD	2"×6"	18 1/4"	24 1/4"				20
AG-2008-LD	2"×8"	20 1/4"	28 1/4"				22
AG-2010-LD	2"×10"	22 1/4"	32 1/4"				23
AG-2012-LD	2"×12"	24 1/4"	36 1/4"				25
AG-2014-LD	2"×14"	26 1/4"	40 1/4"				27
AG-2016-LD	2"×16"	28 1/4"	44 1/4"				29
AG-2018-LD	2"×18"	30 1/4"	48 1/4"				30
AG-2020-LD	2"×20"	32 1/4"	52 1/4"				32
AG-2022-LD	2"×22"	34 1/4"	56 1/4"				34
AG-2024-LD	2"×24"	36 1/4"	60 1/4"				36
AG-2026-LD	2"×26"	38 1/4"	64 1/4"				38
AG-2028-LD	2"×28"	40 1/4"	68 1/4"				39
AG-2030-LD	2"×30"	42 1/4"	72 1/4"				41
AG-2036-LD	2"×36"	48 1/4"	84 1/4"				46
AG-2042-LD	2"×42"	54 1/4"	96 1/4"				52
AG-2048-LD	2"×48"	60 1/4"	108 1/4"				57
AG-2504-LD	2.5"×4"	16 1/4"	20 1/4"	1 1/2"	1"	SAE 8	20
AG-2506-LD	2.5"×6"	18 1/4"	24 1/4"				22
AG-2508-LD	2.5"×8"	20 1/4"	28 1/4"				24
AG-2510-LD	2.5"×10"	22 1/4"	32 1/4"				26
AG-2512-LD	2.5"×12"	24 1/4"	36 1/4"				29
AG-2514-LD	2.5"×14"	26 1/4"	40 1/4"				31
AG-2516-LD	2.5"×16"	28 1/4"	44 1/4"				33
AG-2518-LD	2.5"×18"	30 1/4"	48 1/4"				33
AG-2520-LD	2.5"×20"	32 1/4"	52 1/4"				35
AG-2522-LD	2.5"×22"	34 1/4"	56 1/4"				38
AG-2524-LD	2.5"×24"	36 1/4"	60 1/4"				40
AG-2526-LD	2.5"×26"	38 1/4"	64 1/4"				42
AG-2528-LD	2.5"×28"	40 1/4"	68 1/4"				44
AG-2530-LD	2.5"×30"	42 1/4"	72 1/4"				46
AG-2536-LD	2.5"×36"	48 1/4"	84 1/4"				51
AG-2542-LD	2.5"×42"	54 1/4"	96 1/4"				57
AG-2548-LD	2.5"×48"	60 1/4"	108 1/4"				64
AG-3004-LD	3"×4"	16 1/4"	20 1/4"	1 1/2"	1"	SAE 8	26
AG-3006-LD	3"×6"	18 1/4"	24 1/4"				29
AG-3008-LD	3"×8"	20 1/4"	28 1/4"				31
AG-3010-LD	3"×10"	22 1/4"	32 1/4"				33
AG-3012-LD	3"×12"	24 1/4"	36 1/4"				38
AG-3014-LD	3"×14"	26 1/4"	40 1/4"				40
AG-3016-LD	3"×16"	28 1/4"	44 1/4"				42
AG-3018-LD	3"×18"	30 1/4"	48 1/4"				44
AG-3020-LD	3"×20"	32 1/4"	52 1/4"				46
AG-3022-LD	3"×22"	34 1/4"	56 1/4"				49
AG-3024-LD	3"×24"	36 1/4"	60 1/4"				51
AG-3026-LD	3"×26"	38 1/4"	64 1/4"				53
AG-3028-LD	3"×28"	40 1/4"	68 1/4"				57
AG-3030-LD	3"×30"	42 1/4"	72 1/4"				60
AG-3036-LD	3"×36"	48 1/4"	84 1/4"				66
AG-3042-LD	3"×42"	54 1/4"	96 1/4"				73
AG-3048-LD	3"×48"	60 1/4"	108 1/4"				82
AG-3506-LD	3.5"×6"	18 1/4"	24 1/4"	1 3/4"	1"	SAE 8	49
AG-3508-LD	3.5"×8"	20 1/4"	28 1/4"				51
AG-3510-LD	3.5"×10"	22 1/4"	32 1/4"				55
AG-3512-LD	3.5"×12"	24 1/4"	36 1/4"				57
AG-3514-LD	3.5"×14"	26 1/4"	40 1/4"				60
AG-3516-LD	3.5"×16"	28 1/4"	44 1/4"				64
AG-3518-LD	3.5"×18"	30 1/4"	48 1/4"				66
AG-3520-LD	3.5"×20"	32 1/4"	52 1/4"				71
AG-3524-LD	3.5"×24"	36 1/4"	60 1/4"				75
AG-3530-LD	3.5"×30"	42 1/4"	72 1/4"				86
AG-3536-LD	3.5"×36"	48 1/4"	84 1/4"				95
AG-3542-LD	3.5"×42"	54 1/4"	96 1/4"				104
AG-3548-LD	3.5"×48"	60 1/4"	108 1/4"				113
AG-4008-LD	4"×8"	20 1/4"	28 1/4"	1 3/4"	1"	SAE 8	51
AG-4012-LD	4"×12"	24 1/4"	36 1/4"				57
AG-4016-LD	4"×16"	28 1/4"	44 1/4"				64
AG-4018-LD	4"×18"	30 1/4"	48 1/4"				66
AG-4020-LD	4"×20"	32 1/4"	52 1/4"				71
AG-4024-LD	4"×24"	36 1/4"	60 1/4"				77
AG-4030-LD	4"×30"	42 1/4"	72 1/4"				86
AG-4036-LD	4"×36"	48 1/4"	84 1/4"				97
AG-4042-LD	4"×42"	54 1/4"	96 1/4"				106
AG-4048-LD	4"×48"	60 1/4"	108 1/4"				117
AG-5008-LD	5"×8"	20 1/4"	28 1/4"	2"	1"	SAE 8	68
AG-5012-LD	5"×12"	24 1/4"	36 1/4"				77
AG-5016-LD	5"×16"	28 1/4"	44 1/4"				84
AG-5018-LD	5"×18"	30 1/4"	48 1/4"				88
AG-5020-LD	5"×20"	32 1/4"	52 1/4"				93
AG-5024-LD	5"×24"	36 1/4"	60 1/4"				101
AG-5030-LD	5"×30"	42 1/4"	72 1/4"				115
AG-5036-LD	5"×36"	48 1/4"	84 1/4"				126
AG-5048-LD	5"×48"	60 1/4"	108 1/4"				152

Product Category

Hydraulic Direct Control Valve

Contact Us

E-mail: Axon@axonhydraulics.com

Mob:+1 386 331 6159

Add: Room 2305, European Huashang Building, Tiangao Lane, Yinzhou District, Ningbo,Zhejiang Province
