HomeProducts Cylinder WC-Welding Clevis Cylinder

Hydraulic Cylinder

TR-Tie Rod Cylinder 2500 PSI

Views Product

TH-Tie Rod Cylinder 3000 PSI

Views Product

WT-Welding Bushing Cylinder

Views Product

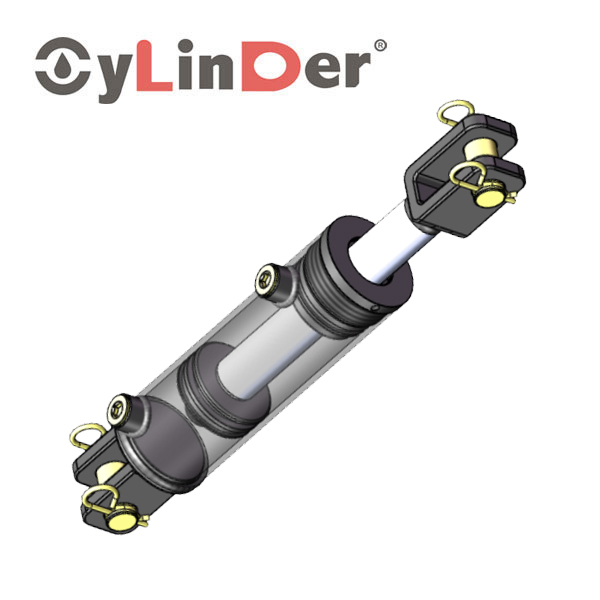

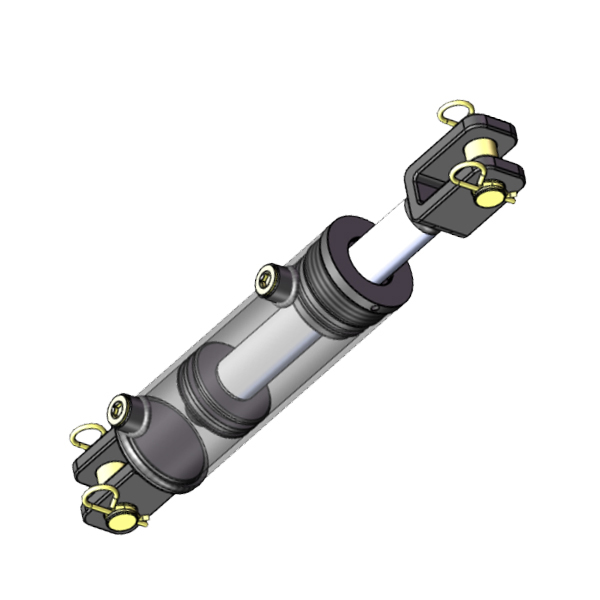

WC-Welding Clevis Cylinder

Bore Size

Rod Size

Oil Port

Intended Size

Stroke

Working Pressure / PSL

Size: TR

Quantity:

ADD TO CART PDF download

I agree with the terms and conditions

Tags:

SPECIFICATION
MANUFACTURING
Factory introduction


*All DIMENSIONS ARE INCHES.

BORE

ROD

PORTS

A

B

C

D

E

F

G

H

I

J

2.00"

1.25"

SAE 6

10.25"

2.125"

3.72"

2.125"

1.125"

1.000"

0.894"

1.937"

2.50"

1.50"

SAE 8

10.25"

2.125"

3.53"

2.125"

1.125"

1.000"

0.894"

1.925"

3.00"

1.50"

SAE 8

10.25"

2.125"

3.24"

2.125"

1.125"

1.000"

1.071"

2.264"

3.50"

1.75"

SAE 8

10.25"

2.125"

3.18"

2.125"

2.386"

1.125"

1.000"

1.071"

2.165"

4.00"

2.00"

SAE 8

10.25"

2.125"

3.44"

2.125"

2.386"

1.125"

1.000"

1.071"

2.047"

For 8" ASAE Stroke: A = 12.25"

The LDWC 3000PSI Welding Clevis Cylinders were designed for demanding applications and are built to ensure reliability and performance. Each cylinder undergoes rigorous testing for over 50,000 circles with 3000PSI equivalent load. Good reliable quality ensures 2 Years Limited Warranty.
*All numbers given are nominal values and should be used for reference only. All product specifications are subject to change without prior notice.

DOUBLE ACTING - CLEVIS WEWCED CYLINDER TYPE

PART NUMBER	BORE & STROKE	DIMENSIONS		ROD DIAMETER	PIN SIZE	PORTS	COLUMN LOADS(LBS)	WEIGHT (LBS)
PART NUMBER	BORE & STROKE	RETRACTED	EXTENDED	ROD DIAMETER	PIN SIZE	PORTS	COLUMN LOADS(LBS)	WEIGHT (LBS)
WC-2004-LD	2" X 4"	14 1/4"	18 1/4"	1 1/4"	1"	SAE 6	9400	14
WC-2006-LD	2" X 6"	16 1/4"	22 1/4"				9400	16
WC-2008-LD	2" X 8"	18 1/4"	26 1/4"				9400	17
WC-2008-ASAE-LD	2" X 8"	20 1/4"	28 1/4"				9400	18
WC-2010-LD	2" X 10"	20 1/4"	30 1/4"				9400	19
WC-2012-LD	2" X 12"	22 1/4"	34 1/4"				9400	21
WC-2014-LD	2" X 14"	24 1/4"	38 1/4"				9400	23
WC-2016-LD	2" X 16"	26 1/4"	42 1/4"				9400	25
WC-2018-LD	2" X 18"	28 1/4"	46 1/4"				9400	26
WC-2020-LD	2" X 20"	30 1/4"	50 1/4"				9100	28
WC-2024-LD	2" X 24"	34 1/4"	58 1/4"				6700	31
WC-2028-LD	2" X 28"	38 1/4"	66 1/4"				5200	35
WC-2030-LD	2" X 30"	40 1/4"	70 1/4"				4600	36
WC-2032-LD	2" X 32"	42 1/4"	74 1/4"				4100	38
WC-2034-LD	2" X 34"	44 1/4"	78 1/4"				3700	40
WC-2036-LD	2" X 36"	46 1/4"	82 1/4"				3400	42
WC-2040-LD	2" X 40"	50 1/4"	90 1/4"				2800	45
WC-2048-LD	2" X 48"	58 1/4"	106 1/4"				2000	52
WC-2504-LD	2.5" X 4"	14 1/4"	18 1/4"	1 1/2"	1"	SAE 8	14700	18
WC-2506-LD	2.5" X 6"	16 1/4"	22 1/4"				14700	20
WC-2508-LD	2.5" X 8"	18 1/4"	26 1/4"				14700	23
WC-2508-ASAE-LD	2.5" X 8"	20 1/4"	28 1/4"				14700	24
WC-2510-LD	2.5" X 10"	20 1/4"	30 1/4"				14700	25
WC-2512-LD	2.5" X 12"	22 1/4"	34 1/4"				14700	27
WC-2514-LD	2.5" X 14"	24 1/4"	38 1/4"				14700	29
WC-2516-LD	2.5" X 16"	26 1/4"	42 1/4"				14700	32
WC-2516-ASAE-LD	2.5" X 16"	31 1/2"	47 1/2"				14700	30.6
WC-2518-LD	2.5" X 18"	28 1/4"	46 1/4"				14700	34
WC-2520-LD	2.5" X 20"	30 1/4"	50 1/4"				14700	36
WC-2524-LD	2.5" X 24"	34 1/4"	58 1/4"				14000	40
WC-2528-LD	2.5" X 28"	38 1/4"	66 1/4"				10800	45
WC-2530-LD	2.5" X 30"	40 1/4"	70 1/4"				9600	47
WC-2532-LD	2.5" X 32"	42 1/4"	74 1/4"				8600	49
WC-2534-LD	2.5" X 34"	44 1/4"	78 1/4"				7700	52
WC-2536-LD	2.5" X 36"	46 1/4"	82 1/4"				7000	54
WC-2540-LD	2.5" X 40"	50 1/4"	90 1/4"				5800	58
WC-2548-LD	2.5" X 48"	58 1/4"	106 1/4"				4200	67
WC-3004-LD	3" X 4"	14 1/4"	18 1/4"	1 1/2"	1"	SAE 8	21200	22
WC-3006-LD	3" X 6"	16 1/4"	22 1/4"				21200	24
WC-3008-LD	3" X 8"	18 1/4"	26 1/4"				21200	27
WC-3008-ASAE-LD	3" X 8"	20 1/4"	28 1/4"				21200	28
WC-3010-LD	3" X 10"	20 1/4"	30 1/4"				21200	29
WC-3012-LD	3" X 12"	22 1/4"	34 1/4"				21200	31
WC-3014-LD	3" X 14"	24 1/4"	38 1/4"				21200	34
WC-3016-LD	3" X 16"	26 1/4"	42 1/4"				21200	36
WC-3016-ASAE-LD	3" X 16"	31 1/2"	47 1/2"				21200	35.7
WC-3018-LD	3" X 18"	28 1/4"	46 1/4"				21200	39
WC-3020-LD	3" X 20"	30 1/4"	50 1/4"				18800	41
WC-3024-LD	3" X 24"	34 1/4"	58 1/4"				14000	46
WC-3028-LD	3" X 28"	38 1/4"	66 1/4"				10800	51
WC-3030-LD	3" X 30"	40 1/4"	70 1/4"				9600	53
WC-3032-LD	3" X 32"	42 1/4"	74 1/4"				8600	56
WC-3034-LD	3" X 34"	44 1/4"	78 1/4"				7700	58
WC-3036-LD	3" X 36"	46 1/4"	82 1/4"				7000	61
WC-3504-LD	3.5" X 4"	14 1/4"	18 1/4"	1 3/4"	1"	SAE 8	28800	27
WC-3506-LD	3.5" X 6"	16 1/4"	22 1/4"				28800	30
WC-3508-LD	3.5" X 8"	18 1/4"	26 1/4"				28800	34
WC-3508-ASAE-LD	3.5" X 8"	20 1/4"	28 1/4"				28800	35
WC-3510-LD	3.5" X 10"	20 1/4"	30 1/4"				28800	36
WC-3512-LD	3.5" X 12"	22 1/4"	34 1/4"				28800	39
WC-3514-LD	3.5" X 14"	24 1/4"	38 1/4"				28800	42
WC-3516-LD	3.5" X 16"	26 1/4"	42 1/4"				28800	46
WC-3516-ASAE-LD	3.5" X 16"	31 1/2"	47 1/2"				28800	46.7
WC-3518-LD	3.5" X 18"	28 1/4"	46 1/4"				28800	49
WC-3520-LD	3.5" X 20"	30 1/4"	50 1/4"				28800	52
WC-3524-LD	3.5" X 24"	34 1/4"	58 1/4"				26000	58
WC-3528-LD	3.5" X 28"	38 1/4"	66 1/4"				20100	64
WC-3530-LD	3.5" X 30"	40 1/4"	70 1/4"				17900	67
WC-3532-LD	3.5" X 32"	42 1/4"	74 1/4"				16000	70
WC-3534-LD	3.5" X 34"	44 1/4"	78 1/4"				14400	73
WC-3536-LD	3.5" X 36"	46 1/4"	82 1/4"				13000	76
WC-4004-LD	4" X 4"	14 1/4"	18 1/4"	2"	1"	SAE 8	37600	33
WC-4006-LD	4" X 6"	16 1/4"	22 1/4"				37600	37
WC-4008-LD	4" X 8"	18 1/4"	26 1/4"				37600	42
WC-4008-ASAE-LD	4" X 8"	20 1/4"	28 1/4"				37600	43
WC-4010-LD	4" X 10"	20 1/4"	30 1/4"				37600	44
WC-4012-LD	4" X 12"	22 1/4"	34 1/4"				37600	48
WC-4014-LD	4" X 14"	24 1/4"	38 1/4"				37600	52
WC-4016-LD	4" X 16"	26 1/4"	42 1/4"				37600	55
WC-4016-ASAE-LD	4" X 16"	31 1/2"	47 1/2"				37600	58.9
WC-4018-LD	4" X 18"	28 1/4"	46 1/4"				37600	59
WC-4020-LD	4" X 20"	30 1/4"	50 1/4"				37600	63
WC-4024-LD	4" X 24"	34 1/4"	58 1/4"				37600	70
WC-4028-LD	4" X 28"	38 1/4"	66 1/4"				34300	77
WC-4030-LD	4" X 30"	40 1/4"	70 1/4"				30500	81
WC-4032-LD	4" X 32"	42 1/4"	74 1/4"				27300	85
WC-4034-LD	4" X 34"	44 1/4"	78 1/4"				24600	89
WC-4036-LD	4" X 36"	46 1/4"	82 1/4"				22200	92

*All DIMENSIONS ARE INCHES.

BORE

ROD

PORTS

A

B

C

D

E

F

G

H

I

J

2.00"

1.25"

SAE 6

10.25"

2.125"

3.72"

2.125"

1.125"

1.000"

0.894"

1.937"

2.50"

1.50"

SAE 8

10.25"

2.125"

3.53"

2.125"

1.125"

1.000"

0.894"

1.925"

3.00"

1.50"

SAE 8

10.25"

2.125"

3.24"

2.125"

1.125"

1.000"

1.071"

2.264"

3.50"

1.75"

SAE 8

10.25"

2.125"

3.18"

2.125"

2.386"

1.125"

1.000"

1.071"

2.165"

4.00"

2.00"

SAE 8

10.25"

2.125"

3.44"

2.125"

2.386"

1.125"

1.000"

1.071"

2.047"

For 8" ASAE Stroke: A = 12.25"

The LDWC 3000PSI Welding Clevis Cylinders were designed for demanding applications and are built to ensure reliability and performance. Each cylinder undergoes rigorous testing for over 50,000 circles with 3000PSI equivalent load. Good reliable quality ensures 2 Years Limited Warranty.
*All numbers given are nominal values and should be used for reference only. All product specifications are subject to change without prior notice.

DOUBLE ACTING - CLEVIS WEWCED CYLINDER TYPE

PART NUMBER	BORE & STROKE	DIMENSIONS		ROD DIAMETER	PIN SIZE	PORTS	COLUMN LOADS(LBS)	WEIGHT (LBS)
PART NUMBER	BORE & STROKE	RETRACTED	EXTENDED	ROD DIAMETER	PIN SIZE	PORTS	COLUMN LOADS(LBS)	WEIGHT (LBS)
WC-2004-LD	2" X 4"	14 1/4"	18 1/4"	1 1/4"	1"	SAE 6	9400	14
WC-2006-LD	2" X 6"	16 1/4"	22 1/4"				9400	16
WC-2008-LD	2" X 8"	18 1/4"	26 1/4"				9400	17
WC-2008-ASAE-LD	2" X 8"	20 1/4"	28 1/4"				9400	18
WC-2010-LD	2" X 10"	20 1/4"	30 1/4"				9400	19
WC-2012-LD	2" X 12"	22 1/4"	34 1/4"				9400	21
WC-2014-LD	2" X 14"	24 1/4"	38 1/4"				9400	23
WC-2016-LD	2" X 16"	26 1/4"	42 1/4"				9400	25
WC-2018-LD	2" X 18"	28 1/4"	46 1/4"				9400	26
WC-2020-LD	2" X 20"	30 1/4"	50 1/4"				9100	28
WC-2024-LD	2" X 24"	34 1/4"	58 1/4"				6700	31
WC-2028-LD	2" X 28"	38 1/4"	66 1/4"				5200	35
WC-2030-LD	2" X 30"	40 1/4"	70 1/4"				4600	36
WC-2032-LD	2" X 32"	42 1/4"	74 1/4"				4100	38
WC-2034-LD	2" X 34"	44 1/4"	78 1/4"				3700	40
WC-2036-LD	2" X 36"	46 1/4"	82 1/4"				3400	42
WC-2040-LD	2" X 40"	50 1/4"	90 1/4"				2800	45
WC-2048-LD	2" X 48"	58 1/4"	106 1/4"				2000	52
WC-2504-LD	2.5" X 4"	14 1/4"	18 1/4"	1 1/2"	1"	SAE 8	14700	18
WC-2506-LD	2.5" X 6"	16 1/4"	22 1/4"				14700	20
WC-2508-LD	2.5" X 8"	18 1/4"	26 1/4"				14700	23
WC-2508-ASAE-LD	2.5" X 8"	20 1/4"	28 1/4"				14700	24
WC-2510-LD	2.5" X 10"	20 1/4"	30 1/4"				14700	25
WC-2512-LD	2.5" X 12"	22 1/4"	34 1/4"				14700	27
WC-2514-LD	2.5" X 14"	24 1/4"	38 1/4"				14700	29
WC-2516-LD	2.5" X 16"	26 1/4"	42 1/4"				14700	32
WC-2516-ASAE-LD	2.5" X 16"	31 1/2"	47 1/2"				14700	30.6
WC-2518-LD	2.5" X 18"	28 1/4"	46 1/4"				14700	34
WC-2520-LD	2.5" X 20"	30 1/4"	50 1/4"				14700	36
WC-2524-LD	2.5" X 24"	34 1/4"	58 1/4"				14000	40
WC-2528-LD	2.5" X 28"	38 1/4"	66 1/4"				10800	45
WC-2530-LD	2.5" X 30"	40 1/4"	70 1/4"				9600	47
WC-2532-LD	2.5" X 32"	42 1/4"	74 1/4"				8600	49
WC-2534-LD	2.5" X 34"	44 1/4"	78 1/4"				7700	52
WC-2536-LD	2.5" X 36"	46 1/4"	82 1/4"				7000	54
WC-2540-LD	2.5" X 40"	50 1/4"	90 1/4"				5800	58
WC-2548-LD	2.5" X 48"	58 1/4"	106 1/4"				4200	67
WC-3004-LD	3" X 4"	14 1/4"	18 1/4"	1 1/2"	1"	SAE 8	21200	22
WC-3006-LD	3" X 6"	16 1/4"	22 1/4"				21200	24
WC-3008-LD	3" X 8"	18 1/4"	26 1/4"				21200	27
WC-3008-ASAE-LD	3" X 8"	20 1/4"	28 1/4"				21200	28
WC-3010-LD	3" X 10"	20 1/4"	30 1/4"				21200	29
WC-3012-LD	3" X 12"	22 1/4"	34 1/4"				21200	31
WC-3014-LD	3" X 14"	24 1/4"	38 1/4"				21200	34
WC-3016-LD	3" X 16"	26 1/4"	42 1/4"				21200	36
WC-3016-ASAE-LD	3" X 16"	31 1/2"	47 1/2"				21200	35.7
WC-3018-LD	3" X 18"	28 1/4"	46 1/4"				21200	39
WC-3020-LD	3" X 20"	30 1/4"	50 1/4"				18800	41
WC-3024-LD	3" X 24"	34 1/4"	58 1/4"				14000	46
WC-3028-LD	3" X 28"	38 1/4"	66 1/4"				10800	51
WC-3030-LD	3" X 30"	40 1/4"	70 1/4"				9600	53
WC-3032-LD	3" X 32"	42 1/4"	74 1/4"				8600	56
WC-3034-LD	3" X 34"	44 1/4"	78 1/4"				7700	58
WC-3036-LD	3" X 36"	46 1/4"	82 1/4"				7000	61
WC-3504-LD	3.5" X 4"	14 1/4"	18 1/4"	1 3/4"	1"	SAE 8	28800	27
WC-3506-LD	3.5" X 6"	16 1/4"	22 1/4"				28800	30
WC-3508-LD	3.5" X 8"	18 1/4"	26 1/4"				28800	34
WC-3508-ASAE-LD	3.5" X 8"	20 1/4"	28 1/4"				28800	35
WC-3510-LD	3.5" X 10"	20 1/4"	30 1/4"				28800	36
WC-3512-LD	3.5" X 12"	22 1/4"	34 1/4"				28800	39
WC-3514-LD	3.5" X 14"	24 1/4"	38 1/4"				28800	42
WC-3516-LD	3.5" X 16"	26 1/4"	42 1/4"				28800	46
WC-3516-ASAE-LD	3.5" X 16"	31 1/2"	47 1/2"				28800	46.7
WC-3518-LD	3.5" X 18"	28 1/4"	46 1/4"				28800	49
WC-3520-LD	3.5" X 20"	30 1/4"	50 1/4"				28800	52
WC-3524-LD	3.5" X 24"	34 1/4"	58 1/4"				26000	58
WC-3528-LD	3.5" X 28"	38 1/4"	66 1/4"				20100	64
WC-3530-LD	3.5" X 30"	40 1/4"	70 1/4"				17900	67
WC-3532-LD	3.5" X 32"	42 1/4"	74 1/4"				16000	70
WC-3534-LD	3.5" X 34"	44 1/4"	78 1/4"				14400	73
WC-3536-LD	3.5" X 36"	46 1/4"	82 1/4"				13000	76
WC-4004-LD	4" X 4"	14 1/4"	18 1/4"	2"	1"	SAE 8	37600	33
WC-4006-LD	4" X 6"	16 1/4"	22 1/4"				37600	37
WC-4008-LD	4" X 8"	18 1/4"	26 1/4"				37600	42
WC-4008-ASAE-LD	4" X 8"	20 1/4"	28 1/4"				37600	43
WC-4010-LD	4" X 10"	20 1/4"	30 1/4"				37600	44
WC-4012-LD	4" X 12"	22 1/4"	34 1/4"				37600	48
WC-4014-LD	4" X 14"	24 1/4"	38 1/4"				37600	52
WC-4016-LD	4" X 16"	26 1/4"	42 1/4"				37600	55
WC-4016-ASAE-LD	4" X 16"	31 1/2"	47 1/2"				37600	58.9
WC-4018-LD	4" X 18"	28 1/4"	46 1/4"				37600	59
WC-4020-LD	4" X 20"	30 1/4"	50 1/4"				37600	63
WC-4024-LD	4" X 24"	34 1/4"	58 1/4"				37600	70
WC-4028-LD	4" X 28"	38 1/4"	66 1/4"				34300	77
WC-4030-LD	4" X 30"	40 1/4"	70 1/4"				30500	81
WC-4032-LD	4" X 32"	42 1/4"	74 1/4"				27300	85
WC-4034-LD	4" X 34"	44 1/4"	78 1/4"				24600	89
WC-4036-LD	4" X 36"	46 1/4"	82 1/4"				22200	92

Product Category

Hydraulic Direct Control Valve

Contact Us

E-mail: Axon@axonhydraulics.com

Mob:+1 386 331 6159

Add: Room 2305, European Huashang Building, Tiangao Lane, Yinzhou District, Ningbo,Zhejiang Province
