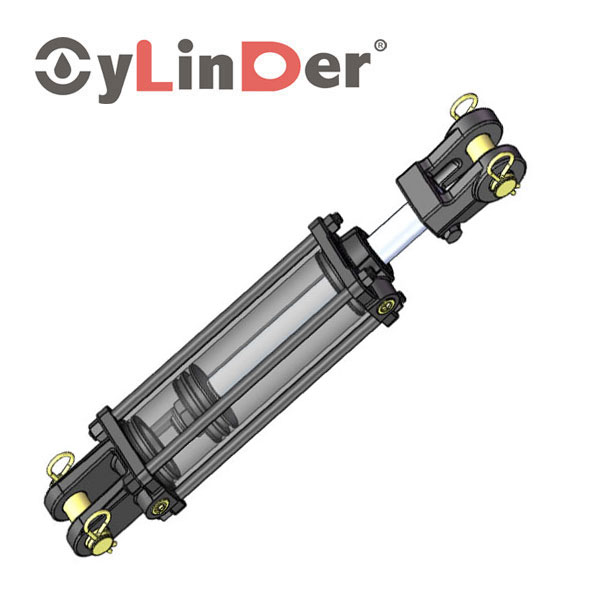

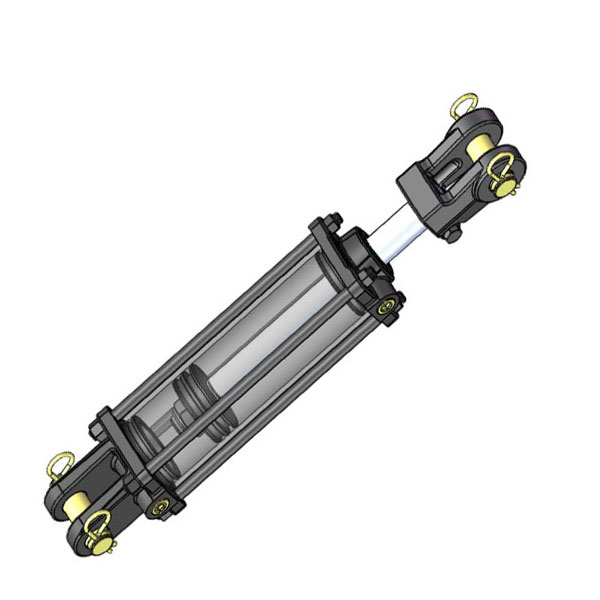

TH-Tie Rod Cylinder 3000 PSI
- SPECIFICATION
- MANUFACTURING
- Factory introduction
*All DIMENSIONS ARE INCHES.
| BORE | ROD | ROD THREAD | PORTS | A | B | C | D | E | F | G | H | I |
| 2.00" | 1.125" | 1 1/8-12-UNF | 3/8 NPT | 10.25" | M10 | 1.0" | 2.125" | 3.502" | 2.50" | 1.165” | 2.008" | 2.504" |
| 2.50" | 1.125" | 1 1/8-12-UNF | 3/8 NPT | 10.25" | M10 | 1.0" | 2.125" | 3.502" | 2.50" | 1.165” | 2.008" | 2.504" |
| 3.00" | 1.25" | 1 1/4-12-UNF | 1/2 NPT | 10.25" | M12 | 1.0" | 2.125" | 3.502" | 2.56" | 1.165” | 2.008" | 2.717" |
| 3.50" | 1.25" | 1 1/4-12-UNF | 1/2 NPT | 10.25" | M14 | 1.0" | 2.125" | 3.502" | 2.56" | 1.165” | 2.008" | 2.717" |
| 4.00" | 1.25" | 1 1/4-12-UNF | 1/2 NPT | 10.25" | M16 | 1.0" | 2.125" | 3.502" | 2.76" | 1.165” | 2.008" | 2.717" |
For 8.00" ASAE STROKE: A= 12.25"
For 16.00" ASAE STROKE: A= 15.50" , C= 1.25"
For TR3.0-3516-ASAE-LD, Rod diameter is 2.00”
For TR3.0-4016-ASAE-LD, Rod diameter is 2.00”
The LDTH 3000PSI Tie Rod Cylinders were designed in rugged agriculture applications that suitable used in any industry. Each cylinder undergoes rigorous testing for over 50,000 circles with 2500PSI equivalent load ood reliable quality ensures 2 Years Limited Warranty.
*All numbers given are nominal values and should be used for reference only. All product specifications are subject to change without prior notice.
3000PSI TIE-ROD CYLINDER TYPE
| PART NUMBER | BORE & STROKE | DIMENSIONS | ROD DIAMETER | PIN SIZE | PORTS | COLUMN LOADS(LBS) | WEIGHT (LBS) | |
| RETRACTED | EXTENDED | |||||||
| TR3.0-2004-LD | 2"×4" | 14 1/4" | 18 1/4" | 1 1/8" | 1" | SAE8 | 9420 | 16 |
| TR3.0-2006-LD | 2"×6" | 16 1/4" | 22 1/4" | 9420 | 17 | |||
| TR3.0-2008-LD | 2"×8" | 18 1/4" | 26 1/4" | 9420 | 19 | |||
| TR3.0-2008-ASAE-LD | 2"×8" | 20 1/4" | 28 1/4" | 9420 | 20 | |||
| TR3.0-2010-LD | 2"×10" | 20 1/4" | 30 1/4" | 9420 | 20 | |||
| TR3.0-2012-LD | 2"×12" | 22 1/4" | 34 1/4" | 9420 | 22 | |||
| TR3.0-2014-LD | 2"×14" | 24 1/4" | 38 1/4" | 9420 | 24 | |||
| TR3.0-2016-LD | 2"×16" | 26 1/4" | 42 1/4" | 9420 | 25 | |||
| TR3.0-2018-LD | 2"×18" | 28 1/4" | 46 1/4" | 8310 | 27 | |||
| TR3.0-2020-LD | 2"×20" | 30 1/4" | 50 1/4" | 7050 | 28 | |||
| TR3.0-2022-LD | 2"×22" | 32 1/4" | 54 1/4" | 6050 | 30 | |||
| TR3.0-2024-LD | 2"×24" | 34 1/4" | 58 1/4" | 5250 | 31 | |||
| TR3.0-2030-LD | 2"×30" | 40 1/4" | 70 1/4" | 3610 | 36 | |||
| TR3.0-2036-LD | 2"×36" | 46 1/4" | 82 1/4" | 2630 | 41 | |||
| TR3.0-2504-LD | 2.5"×4" | 14 1/4" | 18 1/4" | 1 1/8" | 1" | SAE8 | 14720 | 19 |
| TR3.0-2506-LD | 2.5"×6" | 16 1/4" | 22 1/4" | 14720 | 21 | |||
| TR3.0-2508-LD | 2.5"×8" | 18 1/4" | 26 1/4" | 14720 | 22 | |||
| TR3.0-2508-ASAE-LD | 2.5"×8" | 20 1/4" | 28 1/4" | 14720 | 23 | |||
| TR3.0-2510-LD | 2.5"×10" | 20 1/4" | 30 1/4" | 14720 | 24 | |||
| TR3.0-2512-LD | 2.5"×12" | 22 1/4" | 34 1/4" | 14720 | 26 | |||
| TR3.0-2514-LD | 2.5"×14" | 24 1/4" | 38 1/4" | 1 1/4" | 14720 | 28 | ||
| TR3.0-2516-LD | 2.5"×16" | 26 1/4" | 42 1/4" | 14720 | 29 | |||
| TR3.0-2518-LD | 2.5"×18" | 28 1/4" | 46 1/4" | 12790 | 32 | |||
| TR3.0-2520-LD | 2.5"×20" | 30 1/4" | 50 1/4" | 10840 | 34 | |||
| TR3.0-2524-LD | 2.5"×24" | 34 1/4" | 58 1/4" | 8070 | 38 | |||
| TR3.0-2528-LD | 2.5"×28" | 38 1/4" | 66 1/4" | 6240 | 40 | |||
| TR3.0-2530-LD | 2.5"×30" | 40 1/4" | 70 1/4" | 6240 | 43 | |||
| TR3.0-2536-LD | 2.5"×36" | 46 1/4" | 82 1/4" | 5550 | 49 | |||
| TR3.0-2548-LD | 2.5"×48" | 58 1/4" | 106 1/4" | 2430 | 60 | |||
| TR3.0-3004-LD | 3"×4" | 14 1/4" | 18 1/4" | 1 1/4" | 1" | SAE8 | 21200 | 24 |
| TR3.0-3006-LD | 3"×6" | 16 1/4" | 22 1/4" | 21200 | 26 | |||
| TR3.0-3008-LD | 3"×8" | 18 1/4" | 26 1/4" | 21200 | 28 | |||
| TR3.0-3008-ASAE-LD | 3"×8" | 20 1/4" | 28 1/4" | 21200 | 29 | |||
| TR3.0-3010-LD | 3"×10" | 20 1/4" | 30 1/4" | 21200 | 30 | |||
| TR3.0-3012-LD | 3"×12" | 22 1/4" | 34 1/4" | 21200 | 33 | |||
| TR3.0-3014-LD | 3"×14" | 24 1/4" | 38 1/4" | 1 1/2" | 21200 | 35 | ||
| TR3.0-3016-LD | 3"×16" | 26 1/4" | 42 1/4" | 21200 | 37 | |||
| TR3.0-3016-ASAE-LD | 3"×16" | 31 1/2" | 47 1/2" | 1 1/4” | 21200 | 42 | ||
| TR3.0-3018-LD | 3"×18" | 28 1/4" | 46 1/4" | 1“ | 21200 | 42 | ||
| TR3.0-3020-LD | 3"×20" | 30 1/4" | 50 1/4" | 21200 | 44 | |||
| TR3.0-3024-LD | 3"×24" | 34 1/4" | 58 1/4" | 16580 | 49 | |||
| TR3.0-3030-LD | 3"×30" | 40 1/4" | 70 1/4" | 11410 | 57 | |||
| TR3.0-3036-LD | 3"×36" | 46 1/4" | 82 1/4" | 8330 | 65 | |||
| TR3.0-3048-LD | 3"×48" | 58 1/4" | 106 1/4" | 4990 | 75 | |||
| TR3.0-3060-LD | 3"×60" | 70 1/4" | 130 1/4" | 3320 | 93 | |||
| TR3.0-3504-LD | 3.5"×4" | 14 1/4" | 18 1/4" | 1 1/2" | 1" | SAE8 | 28860 | 29 |
| TR3.0-3506-LD | 3.5"×6" | 16 1/4" | 22 1/4" | 28860 | 32 | |||
| TR3.0-3508-LD | 3.5"×8" | 18 1/4" | 26 1/4" | 28860 | 34 | |||
| TR3.0-3508-ASAE-LD | 3.5"×8" | 20 1/4" | 28 1/4" | 28860 | 35 | |||
| TR3.0-3510-LD | 3.5"×10" | 20 1/4" | 30 1/4" | 28860 | 37 | |||
| TR3.0-3512-LD | 3.5"×12" | 22 1/4" | 34 1/4" | 28860 | 39 | |||
| TR3.0-3514-LD | 3.5"×14" | 24 1/4" | 38 1/4" | 28860 | 42 | |||
| TR3.0-3516-LD | 3.5"×16" | 26 1/4" | 42 1/4" | 28860 | 44 | |||
| TR3.0-3516-ASAE-LD | 3.5"×16" | 31 1/2" | 47 1/2" | 1 1/4” | 22350 | 50 | ||
| TR3.0-3518-LD | 3.5"×18" | 28 1/4" | 46 1/4" | 1“ | 26730 | 47 | ||
| TR3.0-3520-LD | 3.5"×20" | 30 1/4" | 50 1/4" | 22660 | 49 | |||
| TR3.0-3524-LD | 3.5"×24" | 34 1/4" | 58 1/4" | 16880 | 58 | |||
| TR3.0-3530-LD | 3.5"×30" | 40 1/4" | 70 1/4" | 11610 | 66 | |||
| TR3.0-3536-LD | 3.5"×36" | 46 1/4" | 82 1/4" | 8480 | 74 | |||
| TR3.0-3548-LD | 3.5"×48" | 58 1/4" | 106 1/4" | 5080 | 91 | |||
| TR3.0-4004-LD | 4"×4" | 14 1/4" | 18 1/4" | 1 1/2" | 1" | SAE8 | 37690 | 33 |
| TR3.0-4006-LD | 4"×6" | 16 1/4" | 22 1/4" | 37690 | 36 | |||
| TR3.0-4008-LD | 4"×8" | 18 1/4" | 26 1/4" | 37690 | 38 | |||
| TR3.0-4008-ASAE-LD | 4"×8" | 20 1/4" | 28 1/4" | 37690 | 39 | |||
| TR3.0-4010-LD | 4"×10" | 20 1/4" | 30 1/4" | 37690 | 41 | |||
| TR3.0-4012-LD | 4"×12" | 22 1/4" | 34 1/4" | 37690 | 44 | |||
| TR3.0-4014-LD | 4"×14" | 24 1/4" | 38 1/4" | 37690 | 46 | |||
| TR3.0-4016-LD | 4"×16" | 26 1/4" | 42 1/4" | 1 3/4" | 37690 | 49 | ||
| TR3.0-4016-ASAE-LD | 4"×16" | 31 1/2" | 47 1/2" | 2" | 1 1/4” | 37690 | 63 | |
| TR3.0-4018-LD | 4"×18" | 28 1/4" | 46 1/4" | 1 3/4" | 1“ | 37690 | 66 | |
| TR3.0-4020-LD | 4"×20" | 30 1/4" | 50 1/4" | 37690 | 70 | |||
| TR3.0-4024-LD | 4"×24" | 34 1/4" | 58 1/4" | 2" | 37690 | 79 | ||
| TR3.0-4026-LD | 4"×26" | 34 1/4" | 58 1/4" | 37690 | 84 | |||
| TR3.0-4030-LD | 4"×30" | 40 1/4" | 70 1/4" | 36070 | 92 | |||
| TR3.0-4036-LD | 4"×36" | 46 1/4" | 82 1/4" | 26340 | 98 | |||
| TR3.0-4048-LD | 4"×48" | 58 1/4" | 106 1/4" | 15790 | 123 | |||
| TR3.0-5004-LD | 5"×4" | 16 1/4" | 20 1/4" | 2" | 1 1/4" | SAE12 | 58900 | 71 |
| TR3.0-5006-LD | 5"×6" | 18 1/4" | 24 1/4" | 58900 | 76 | |||
| TR3.0-5008-ASAE-LD | 5"×8" | 22 1/4" | 30 1/4" | 58900 | 81 | |||
| TR3.0-5010-LD | 5"×10" | 22 1/4" | 30 1/4" | 58900 | 86 | |||
| TR3.0-5012-LD | 5"×12" | 24 1/4" | 36 1/4" | 58900 | 91 | |||
| TR3.0-5014-LD | 5"×14" | 26 1/4" | 40 1/4" | 58900 | 96 | |||
| TR3.0-5016-LD | 5"×16" | 28 1/4" | 44 1/4" | 58900 | 101 | |||
| TR3.0-5016-ASAE-LD | 5"×16" | 31 1/2" | 47 1/2" | 58900 | 104 | |||
| TR3.0-5018-LD | 5"×18" | 30 1/4" | 48 1/4" | 58900 | 106 | |||
| TR3.0-5020-LD | 5"×20" | 32 1/4" | 52 1/4" | 58900 | 112 | |||
| TR3.0-5024-LD | 5"×24" | 36 1/4" | 60 1/4" | 2 1/4" | 58900 | 122 | ||
| TR3.0-5030-LD | 5"×30" | 42 1/4" | 72 1/4" | 56340 | 137 | |||
| TR3.0-5036-LD | 5"×36" | 48 1/4" | 84 1/4" | 41380 | 153 | |||
| TR3.0-5048-LD | 5"×48" | 60 1/4" | 108 1/4" | 25020 | 163 | |||
