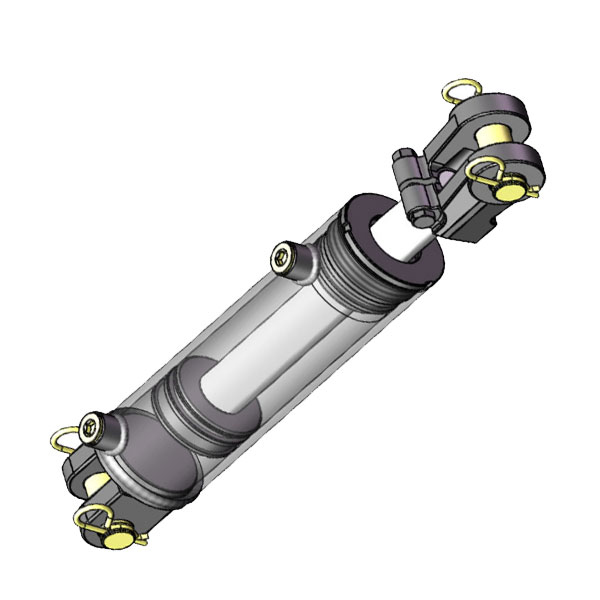

AC-Adjustable Clevis Cylinder
Размер: TR
- Нормы
- Операции вручную
- Презентация завода
*All DIMENSIONS ARE INCHES.
| BORE | ROD | ROD THREAD | PORTS | A | B | C | D | E | F | G | H | I | J | K |
| 1.50 | 1.000" | 7/8-14-UNF | SAE 6 | 10.25" | 1.625" | 4.500" | 1.625" | 1.750" | 2.000" | 0.875" | 0.875" | 0.938" | 1.875" | 0.750" |
| 2.00 | 1.125" | 1 1/8-12-UNF | SAE 8 | 10.25" | 2.125" | 3.625" | 2.125" | 2.125" | 2.504" | 1.125" | 1.165" | 0.812" | 2.062" | 1.000" |
| 2.50 | 1.250" | 1 1/8-12-UNF | SAE 8 | 10.25" | 2.125" | 3.625" | 2.125" | 2.125" | 2.504" | 1.125" | 1.165" | 0.812" | 2.062" | 1.000" |
| 3.00 | 1.500" | 1 1/4-12-UNF | SAE 8 | 10.25" | 1.875" | 3.625" | 2.125" | 2.625" | 2.717" | 1.125" | 1.165" | 0.875" | 2.188" | 1.000" |
| 3.50 | 1.750" | 1 1/4-12-UNF | SAE 8 | 10.25" | 1.875" | 3.625" | 2.125" | 2.625" | 2.717" | 1.125" | 1.165" | 0.938" | 2.188" | 1.000" |
| 4.00" | 2.000" | 1 1/2-12-UNF | SAE 8 | 12.25" | 1.750" | 3.625" | 2.125" | 2.625" | 2.717" | 1.125" | 1.165" | 1.000" | 2.188" | 1.000" |
For 8.00" ASAE Stroke: A = 12.25"
For 8.00" ASAE Stroke: E = 6.50" (1.50" to Bore ) E = 5.62" (2.00 to 4.00" Bore)
The LDAC 3000PSI Adjustable Clevis Cylinders were designed both combing with welding type and tie rod cylinder type, the benefits for users are better functionality, adjustable assembling distance with rod clevis. Each cylinder undergoes rigorous testing for over 50,000 circles with 3000PSI equivalent load. Good reliable quality ensures 2 Years Limited Warranty.
*All numbers given are nominal values and should be used for reference only. All product specifications are subject to change without prior notice.
DOUBLE ACTING - ADJUSTABLE CLEVIS CYLINDER TYPE
| PART NUMBER | BORE & STROKE | DIMENSIONS | ROD DIAMETER | PIN SIZE | PORTS | COLUMN LOADS(LBS) | WEIGHT (LBS) | |
| RETRACTED | EXTENDED | |||||||
| AC-1504-LD | 1.5" X 4" | 14 1/4" | 18 1/4" | 1" | 3/4" | SAE 6 | 5300 | 10 |
| AC-1506-LD | 1.5" X 6" | 16 1/4" | 22 1/4" | 5300 | 11 | |||
| AC-1508-LD | 1.5" X 8" | 18 1/4" | 26 1/4" | 5300 | 12 | |||
| AC-1508-ASAE-LD | 1.5" X 8" | 20 1/4" | 28 1/4" | 5300 | 13 | |||
| AC-1510-LD | 1.5" X 10" | 20 1/4" | 30 1/4" | 5300 | 13 | |||
| AC-1512-LD | 1.5" X 12" | 22 1/4" | 34 1/4" | 5300 | 15 | |||
| AC-1514-LD | 1.5" X 14" | 24 1/4" | 38 1/4" | 5300 | 16 | |||
| AC-1516-LD | 1.5" X 16" | 26 1/4" | 42 1/4" | 5200 | 17 | |||
| AC-1518-LD | 1.5" X 18" | 28 1/4" | 46 1/4" | 4400 | 18 | |||
| AC-1520-LD | 1.5" X 20" | 30 1/4" | 50 1/4" | 3700 | 20 | |||
| AC-1524-LD | 1.5" X 24" | 34 1/4" | 58 1/4" | 2700 | 22 | |||
| AC-1528-LD | 1.5" X 28" | 38 1/4" | 66 1/4" | 2100 | 25 | |||
| AC-1530-LD | 1.5" X 30" | 40 1/4" | 70 1/4" | 1900 | 26 | |||
| AC-1532-LD | 1.5" X 32" | 42 1/4" | 74 1/4" | 1700 | 27 | |||
| AC-1534-LD | 1.5" X 34" | 44 1/4" | 78 1/4" | 1500 | 28 | |||
| AC-1536-LD | 1.5" X 36" | 46 1/4" | 82 1/4" | 1300 | 29 | |||
| AC-2004-LD | 2" X 4" | 14 1/4" | 18 1/4" | 1 1/8" | 1" | SAE 8 | 9400 | 16 |
| AC-2006-LD | 2" X 6" | 16 1/4" | 22 1/4" | 9400 | 17 | |||
| AC-2008-LD | 2" X 8" | 18 1/4" | 26 1/4" | 9400 | 19 | |||
| AC-2008-ASAE-LD | 2" X 8" | 20 1/4" | 28 1/4" | 9400 | 19 | |||
| AC-2010-LD | 2" X 10" | 20 1/4" | 30 1/4" | 9400 | 20 | |||
| AC-2012-LD | 2" X 12" | 22 1/4" | 34 1/4" | 9400 | 22 | |||
| AC-2014-LD | 2" X 14" | 24 1/4" | 38 1/4" | 9400 | 23 | |||
| AC-2016-LD | 2" X 16" | 26 1/4" | 42 1/4" | 8400 | 25 | |||
| AC-2018-LD | 2" X 18" | 28 1/4" | 46 1/4" | 7000 | 27 | |||
| AC-2020-LD | 2" X 20" | 30 1/4" | 50 1/4" | 5900 | 28 | |||
| AC-2024-LD | 2" X 24" | 34 1/4" | 58 1/4" | 4400 | 31 | |||
| AC-2030-LD | 2" X 30" | 40 1/4" | 70 1/4" | 3000 | 36 | |||
| AC-2036-LD | 2" X 36" | 46 1/4" | 82 1/4" | 2200 | 41 | |||
| AC-2504-LD | 2.5" X 4" | 14 1/4" | 18 1/4" | 1 1/4" | 1" | SAE 8 | 14700 | 19 |
| AC-2506-LD | 2.5" X 6" | 16 1/4" | 22 1/4" | 14700 | 20 | |||
| AC-2508-LD | 2.5" X 8" | 18 1/4" | 26 1/4" | 14700 | 22 | |||
| AC-2508-ASAE-LD | 2.5" X 8" | 20 1/4" | 28 1/4" | 14700 | 23 | |||
| AC-2510-LD | 2.5" X 10" | 20 1/4" | 30 1/4" | 14700 | 24 | |||
| AC-2512-LD | 2.5" X 12" | 22 1/4" | 34 1/4" | 14700 | 26 | |||
| AC-2514-LD | 2.5" X 14" | 24 1/4" | 38 1/4" | 14700 | 28 | |||
| AC-2516-LD | 2.5" X 16" | 26 1/4" | 42 1/4" | 12800 | 30 | |||
| AC-2518-LD | 2.5" X 18" | 28 1/4" | 46 1/4" | 10700 | 32 | |||
| AC-2520-LD | 2.5" X 20" | 30 1/4" | 50 1/4" | 9100 | 34 | |||
| AC-2524-LD | 2.5" X 24" | 34 1/4" | 58 1/4" | 6700 | 38 | |||
| AC-2530-LD | 2.5" X 30" | 40 1/4" | 70 1/4" | 4600 | 44 | |||
| AC-2536-LD | 2.5" X 36" | 46 1/4" | 82 1/4" | 3400 | 49 | |||
| AC-3004-LD | 3" X 4" | 14 1/4" | 18 1/4" | 1 1/2" | 1" | SAE 8 | 21200 | 24 |
| AC-3006-LD | 3" X 6" | 16 1/4" | 22 1/4" | 21200 | 26 | |||
| AC-3008-LD | 3" X 8" | 18 1/4" | 26 1/4" | 21200 | 29 | |||
| AC-3008-ASAE-LD | 3" X 8" | 20 1/4" | 28 1/4" | 21200 | 29 | |||
| AC-3010-LD | 3" X 10" | 20 1/4" | 30 1/4" | 21200 | 31 | |||
| AC-3012-LD | 3" X 12" | 22 1/4" | 34 1/4" | 21200 | 33 | |||
| AC-3014-LD | 3" X 14" | 24 1/4" | 38 1/4" | 21200 | 36 | |||
| AC-3016-LD | 3" X 16" | 26 1/4" | 42 1/4" | 21200 | 38 | |||
| AC-3018-LD | 3" X 18" | 28 1/4" | 46 1/4" | 21200 | 41 | |||
| AC-3020-LD | 3" X 20" | 30 1/4" | 50 1/4" | 18800 | 43 | |||
| AC-3024-LD | 3" X 24" | 34 1/4" | 58 1/4" | 14000 | 48 | |||
| AC-3030-LD | 3" X 30" | 40 1/4" | 70 1/4" | 9600 | 56 | |||
| AC-3036-LD | 3" X 36" | 46 1/4" | 82 1/4" | 7000 | 63 | |||
| AC-3504-LD | 3.5" X 4" | 14 1/4" | 18 1/4" | 1 3/4" | 1" | SAE 8 | 28800 | 29 |
| AC-3506-LD | 3.5" X 6" | 16 1/4" | 22 1/4" | 28800 | 32 | |||
| AC-3508-LD | 3.5" X 8" | 18 1/4" | 26 1/4" | 28800 | 35 | |||
| AC-3508-ASAE-LD | 3.5" X 8" | 20 1/4" | 28 1/4" | 28800 | 36 | |||
| AC-3510-LD | 3.5" X 10" | 20 1/4" | 30 1/4" | 28800 | 38 | |||
| AC-3512-LD | 3.5" X 12" | 22 1/4" | 34 1/4" | 28800 | 41 | |||
| AC-3514-LD | 3.5" X 14" | 24 1/4" | 38 1/4" | 28800 | 44 | |||
| AC-3516-LD | 3.5" X 16" | 26 1/4" | 42 1/4" | 28800 | 47 | |||
| AC-3518-LD | 3.5" X 18" | 28 1/4" | 46 1/4" | 28800 | 50 | |||
| AC-3520-LD | 3.5" X 20" | 30 1/4" | 50 1/4" | 28800 | 53 | |||
| AC-3524-LD | 3.5" X 24" | 34 1/4" | 58 1/4" | 26000 | 59 | |||
| AC-3530-LD | 3.5" X 30" | 40 1/4" | 70 1/4" | 17900 | 68 | |||
| AC-3536-LD | 3.5" X 36" | 46 1/4" | 82 1/4" | 13000 | 77 | |||
| AC-4004-LD | 4" X 4" | 14 1/4" | 18 1/4" | 2" | 1" | SAE 8 | 37600 | 35 |
| AC-4006-LD | 4" X 6" | 16 1/4" | 22 1/4" | 37600 | 38 | |||
| AC-4008-LD | 4" X 8" | 18 1/4" | 26 1/4" | 37600 | 42 | |||
| AC-4008-ASAE-LD | 4" X 8" | 20 1/4" | 28 1/4" | 37600 | 43 | |||
| AC-4010-LD | 4" X 10" | 20 1/4" | 30 1/4" | 37600 | 46 | |||
| AC-4012-LD | 4" X 12" | 22 1/4" | 34 1/4" | 37600 | 49 | |||
| AC-4014-LD | 4" X 14" | 24 1/4" | 38 1/4" | 37600 | 53 | |||
| AC-4016-LD | 4" X 16" | 26 1/4" | 42 1/4" | 37600 | 57 | |||
| AC-4018-LD | 4" X 18" | 28 1/4" | 46 1/4" | 37600 | 60 | |||
| AC-4020-LD | 4" X 20" | 30 1/4" | 50 1/4" | 37600 | 64 | |||
| AC-4024-LD | 4" X 24" | 34 1/4" | 58 1/4" | 37600 | 71 | |||
| AC-4030-LD | 4" X 30" | 40 1/4" | 70 1/4" | 30500 | 82 | |||
| AC-4036-LD | 4" X 36" | 46 1/4" | 82 1/4" | 22200 | 93 | |||
